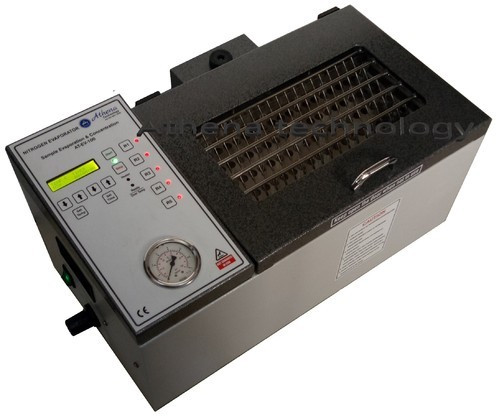

100 Sample Evaporator
Design is Patent

Features:

Compact Size Tabletop Model.
The gap between tank & Body well insulated with imported Glass wool Sheet.
Water Jet Cutting & CNC fabrication.
Best Quality powder coated.
Digital Display.
Specially Designed Silicon self Adhesive Heater fitted at the bottom side of the water tank
Auto Cut off Sensor for process Timer, Heating & gas.
Pneumatic Fitting Janatics & Parker Make are using.
Pressure Gauge WIKA Make.
Side Handles for easy to carry.
Water tank, Test tube Rack & Nozzle Manifold Make SS 316
Well, efficient & adjustable ventilation.
Gas Path Transparent Non-Breakable Tubing.
CE Certified & ISO 9001:2008
Technology: Vortex Sharing Technology
Controlled: Fully Microprocessor based
Nitrogen Flow: Both side Nozzle flow for quick evaporation
Auto Cut off Sensor for process Timer, Heating & gas.
Temperature set-up / down arrow keys (1°C)
Start/stop: Green LED indication when the process is On.
Error indication: LED indication with Buzzer
Certifications :ISO 9001 : 2008 & CE Certified
Gas stations: 5 Nos. with LED indication, gas can be turned on each of independent manifolds when working with samples
Heater: Internal heaters, adjustable from ambient to 95°C
Digital LCD Display
Automatic Control through microprocessor-based keypad for all gas stations.
Pressure Settable
TIME & TEMP LCD Display with microprocessor-based controlled
Start and Stop LED Indication with Alarm
Fully Automatic controller
100 sample Evaporator

Features of AT-EV-50 / 08 / 24 / 100:

Compact Size Fit 2 Evaporator in 1 fume hood
Precise manufacturing using latest technology -Water Jet Cutting & CNC fabrication
High Quality Pressure Gauge from Wika.
Side Handles for easy movement
SS 316 tank & Nozzle Manifold for durability and maintenance free
Best Quality powder coating for great looks & to avoid rusting
Silicon Heater with SS316 Water bath Tank system
Specially Designed for fast & uniform heating
Tank & Body gap is well insulated with imported Glass wool Sheet to avoid heat loss.
Digital LCD Display
Auto Cut off with precision sensor for Time, temperature & gas flow
Best quality Pneumatic Fitting from Janatics & Parker operation
Efficient & adjustable ventilation with Built-in exhaust fan with blower
2mtr 1.5 ID Polyethylene Exhaust hose for easy ventilation
5 Nitrogen Control valves with ON/OFF Switches
50 nitrogen –dispending nozzle in five horizontal rows
Self-glowing Power ON /OFF Switch
Automated Solvent Drying, Solvent Evaporation
