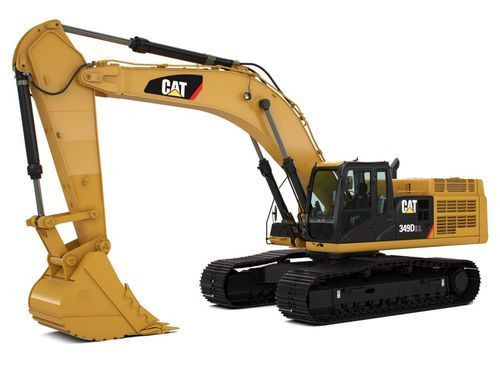

349D-L Large Hydraulic Excavators by Gmmco Limited

Supplier: Gmmco Limited

As a trustworthy organization of this domain, we are committed to offering our clients a superior quality assortment of 349D-L Large Hydraulic Excavators. The excavators are perfectly designed conside..

Categories: ,

Product Description

As a trustworthy organization of this domain, we are committed to offering our clients a superior quality assortment of 349D-L Large Hydraulic Excavators. The excavators are perfectly designed considering the length, height and total dimension at our vendor/manufacturer’s end. The large excavators come with a digger, large bucket and advanced engine and hydraulic configurations. These excavators are made available in various specifications meeting different needs of the business/projects. In addition, Most of the excavators have hydraulic variable pump x 2 type.

Features:
  • Smart operation
  • Easy to learn and control
  • Low maintenance

Applications:
  • Construction
  • Digging
  • Loading materials


Drive:

  • Maximum Travel Speed: 2.7mph
  • Maximum Drawbar Pull: 75985.0lbf
  • Gradeability: 30°/70%


Hydraulic System:

  • Main System – Maximum Flow (Total): 193.0gal/min
  • Maximum Pressure – Travel: 5076.0psi
  • Maximum Pressure – Swing: 4554.0psi
  • Pilot System – Maximum Flow: 11.3gal/min
  • Pilot System – Maximum Pressure: 596.0psi
  • Boom Cylinder – Bore: 6.0in
  • Boom Cylinder – Stroke: 62.0in
  • Stick Cylinder – Bore: 7.0in
  • Stick Cylinder – Stroke: 70.0in
  • Maximum Pressure – Equipment: 5076.0psi
  • Pilot System – Maximum Flow: 2623in3/min
  • TB Bucket Cylinder – Bore: 6.0in
  • TB Bucket Cylinder – Stroke: 53.0in
  • UB Bucket Cylinder – Bore: 6.0in
  • UB Bucket Cylinder – Stroke: 55.0in


Service Refill Capacities:

  • Fuel Tank Capacity: 186.0gal
  • Cooling System: 9.0gal
  • Swing Drive (each): 2.0gal
  • Final Drive (each): 3.0gal
  • Hydraulic System (including tank): 150.0gal
  • Hydraulic Tank: 64.0gal
  • Engine Oil (with filter): 11.0ga

Swing Mechanism:

  • Swing Speed: 8.7rpm
  • Swing Torque: 109896.0lbf-ft


Track:

  • Number of Carrier Rollers (each side) – Long: 2
  • Number of Carrier Rollers (each side) – Standard: 2
  • Number of Shoes (each side) – Long: 52
  • Number of Shoes (each side) – Standard: 49
  • Number of Track Rollers (each side) – Long: 9
  • Number of Track Rollers (each side) – Standard: 8

Product Specification
