500 Kva Cummins Generators by Lucsam Services Private Limited

Diesel Generator Set K19 Series400 kWe, 500 kVA Prime416 kWe, 520 kVA Standby Lowest life cycle costHeavy duty, durable and emission compliant Silent Power : Cummins® 500 kVA & 520 kVA enclosures ..

Categories: ,

Product Description

Diesel Generator Set K19 Series
400 kWe, 500 kVA Prime416 kWe, 520 kVA Standby
Lowest life cycle cost
Heavy duty, durable and emission compliant

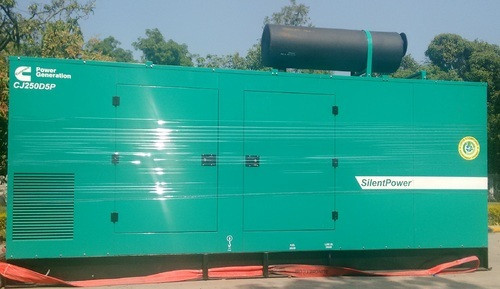

Silent Power : Cummins® 500 kVA & 520 kVA enclosures are designed so as to have optimum performance and serviceability over the complete operating range. The enclosures are compact with integral fuel tank

Standard scope
  • Engine: Cummins® ‘K19 series’ direct injection, water cooled engine, 6 cylinder, in-line, 4 stroke, rated at 1500 RPM, conforming to ISO 3046 / BS 5514 has the following
Specifications:-
  • Cummins PT fuel pump
  • Electrical Step Timing Control (ESTC) injector
  • Optimized turbocharger- Pulse tuned exhaust manifold
  • Stainless steel exhaust flexible connection
  • Radiator or heat exchanger- Plate type lube oil cooler
  • Spin-on filters
  • Fuel, lube oil and by-pass- Dry type replaceable paper element air cleaner with restriction indicator- Flywheel housing and flywheel to suit single bearing alternator
  • Starting motor
  • Electric, battery charging alternator
  • First fill lube oil and coolant

Genset controller PC 1.2
  • Basic stand-alone Genset control system
  • Feature laden modular Genset control system- Part of our modular and interchangeable control product line PMG compatibility and extra inputs and communication capability (ModBus & CAN), are the major advantages
  • Conformance standards : IS/IEC 60034-1, IS 1460, ISO 8528, ISO 3046, IS 13018

Generator set specifications

  • Model C500 D5P
  • Prime Power Rating kVA 500
  • Output Voltage and Frequency 415 Volts, 50 Hz
  • Power Factor 0.8 (lag)No. of phases 3 phase

Engine specifications

  • Make Cummins
  • Model KTAA19-G10
  • No. of cylinders 6, in line
  • Aspiration Turbocharged,
  • Charged air cooled Bore x Stroke 159 mm x 159 mm
  • Displacement 18.9 ltrs
  • Output - Prime 400 kWm
  • Fuel consumption @ 75% load with Radiator & Fan 84.28 ltr/hr
  • Fuel consumption @ 100% load with Radiator & Fan 109 ltr/hr
  • Typical lube oil consumption @ 100% load 0.12 ltr/hr
  • Total wet weight ( engine + radiator and fan) 2300 kg
  • Length x Width x Height (engine) 1598 x 987 x 1242 mm
  • Compression Ratio 16.7 : 1
  • Piston Speed 7.95 m/s Governor / Class Electronic / A1Lubricating oil system capacity 50
  • Coolant capacity (engine + radiator) 80 ltrs
  • Combustion air intake @ 100% load (+/- 5%) 37 m3/min Fan air flow across radiator 20111 CFM
  • Exhaust Temperature 468°C

Model: C500D5P
Duty: Prime
Power Rating kVA / kWe: 500/400
No. of Phases: 3
Output Voltage and Frequency (V and Hz): 415 V, 50 Hz
Power Factor: 0.8 (lagging)
Current (A): 695
RPM: 1500

GROUPES ÉLECTROGÈNES
also exports to Africa and other countries with
Fully equipped and service support setup in Africa

Product Specification
