Product Description

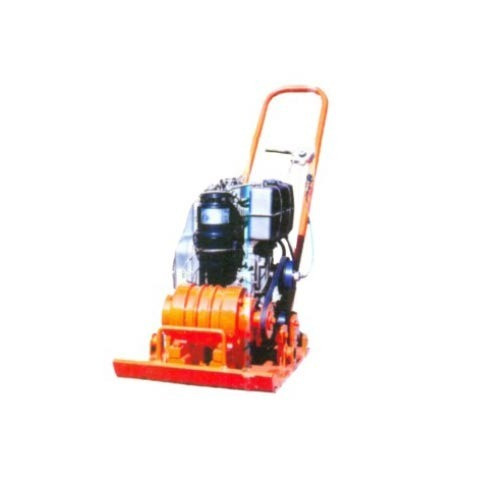

Description of Soil Compactors
The ABLE range of plate soil compactors, are designed lor operation in typically difficult construction sites. Each model features an Extra thick base plate and frame of robust modular design.

Applications:

ABLE Compactors offers construction and Civil Industry a Power full yet convenient method of quick & perfect soil compaction. It is Applicable on all types of soils & sub grades as we" as broken rocks, Earthgravel, slag, chips, dry concrete, bituminous coarse base, backfills. Plinth fillings, embankments, foundations, bridge abetments. railway Track. Repair Of patches, manholes etc.

Special technical features:

High working speed at low cost
Maximum Depth Effect
Easy to operate & less maintenance
Easy change of amplitude & frequency to suit different soil
High compaction capacity.
Throttel speed control
Centrifugal clutch pullecy
Tyre for easy transportation
Light in weight
Robust in design & construction
High gradiant capacity
Self propelled
Vibration proof stearing handle
Maintenance free Accept routing oil change and air filter
Optional Rubber mat or sheet can be fitted at base for lacker finish paving tiles and fragile materials.

Model	A/VC 10	A/VC 20	A/VC 40
Compaction Capacity	1/2 ton	2/3 ton	4/5 ton
Impact Force (Appr.)	850 kg.	1300 kg.	3000 kg.
Vibration Frequency (Appr.)	2100 p/min.	2000 p/min.	2000 p/min.
Depth Effect depending upon type of Soil	6 inch	10 inch	12 inch
Travel Speed	60 ft. p/min.	65 ft. p/min.	65 ft. p/min.
Gradiant Capacity	20.00%	20.00%	20.00%
Compaction Plate Size	23-x12"	32"x16"	25" x 20"
Working Area (Per Hour)	4300 sq. ft.	4400 sq. ft.	5500 sq. ft.
Total Gross weight	55 kg.	130 kg.	182 kg.
Direction of Travel	Forward	Forward	Forward
Power Unit	AB 120 'ABLE' Petrol/Kerosene engine or Greaves/Villiers C12 or 2 Hp(3P) Motor with Starter	3.4 HP Greaves Air cooled 4 Stroke P/K Engine or GK 200 Honda Engine or 3Hp (3P) Motor with starter or (4.4 Hp Lombardini Diesel Specia Mixlel)	4.4 HP Greaves Lombardini Diesel Engine or 5 HP (3 P) Electric Motor and L/T Starter
