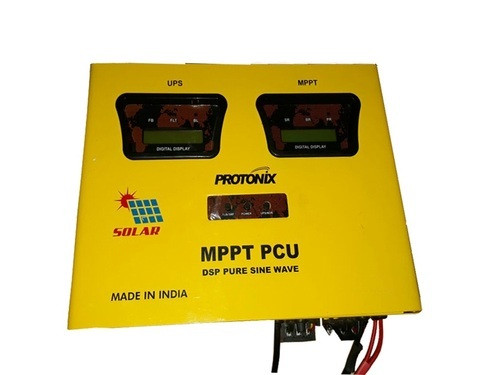

800VA DSP Pure Sine Wave Inverter MPPT PCU By Protonics Systems...

Featured Suppliers

How it works

Submit an enquiry to a product.
Wait for a call from nearest supplier from your area.
Get quote and product details.
Choose best from them.

Recently Added Suppliers

Product Description

DSP based; less components, small size less electricity bill more efficiency

Soft start features; protects appliances at startup.

Supply the highest quality pure sine wave power; protects your expensive household appliance and sensitive office equipments.

Highly cost effective design.
Easy to operate.
Low maintenance cost.
Over load and D.C. low protection.
Software controlled Auto self testing.
Fully computer friendly UPS operation.
Intelligent Auto sense; continuously monitors health of system.
AC Input low and high voltage cut off protections in both, inverter and U.P.S. modes.
Constant voltage/Constant current pulse charging with wide Input range (130-280) V.
(Charging current-10Amp^r)
Silent operation of fans, tube light or appliances.
Quick change over from Mains to inverter mode.
Software controlled Auto reset feature for over load, short ckt and low battery
Special charging algorithm to enhance battery life.
Fully protected against short circuit of AC mains with output.
Phase to phase short circuit protection.
Very low no load current for prolonged battery operation under standby.
Cooling fan improves reliability of system.
Secure operation; No tension for night charging.
Intelligent charging; adapts itself to low, high battery, more and less power cut areas, battery health conditions.
Can even charge 6.4 volt deep discharged battery.
Reverse battery protection (optional).
Generator compatible.
High efficiency; better than 85%.

SOLAR MPPT CHARGER

The MPPT Charger employs the latest digital signal processing technology for accurate definite tracking of the maximum Power Point (MPP) irrespective of environmental factors such as temperature Solar Irradiation. A high speed modified P O algorithm has been implemented to optimally harvest transfer maximum energy from the connected Solar Panel to the Batteries. The charger is also equipped with the following safety features for lasting Performance.

1. Lightning protection

2. Battery Reverse protection

3. Panel reverse protection

4. Over Current protection
