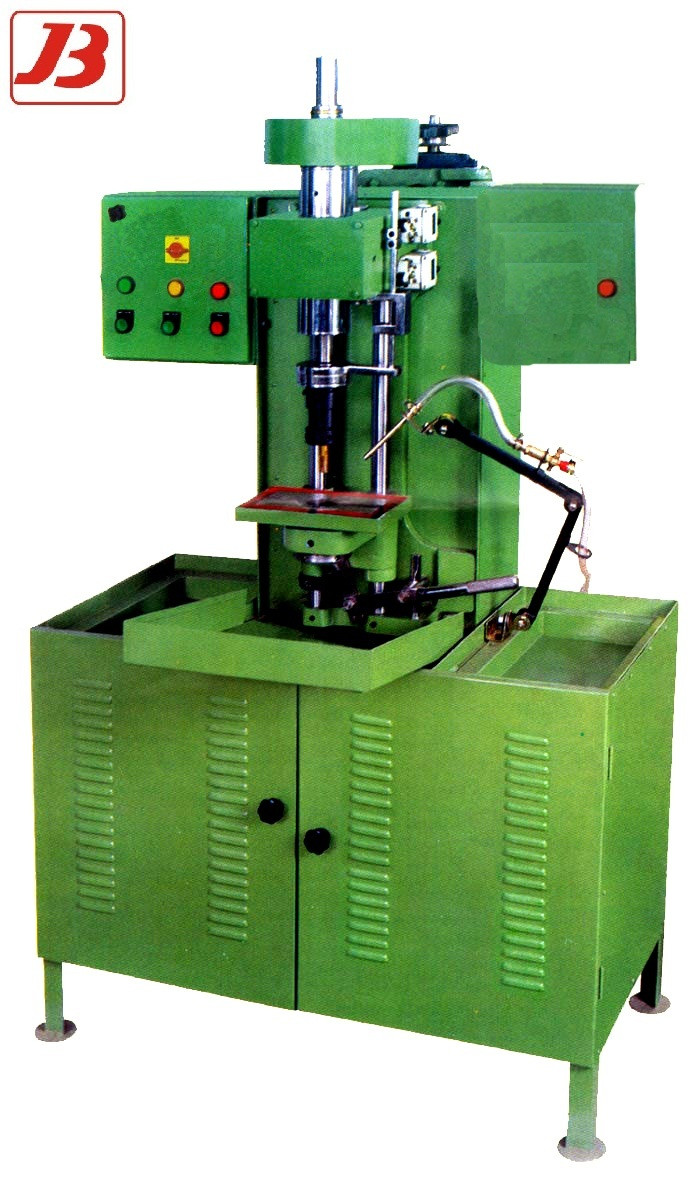

Automatic Tapping Machine - Pitch Control by J. B. Engineering Works

We introduce ourselves as manufacturers of "JB" (ATM) Automatic Tapping Machine (Pitch Control). The Machine is suitable for tapping and Threading (Go-Not-Go Accuracy) with Tap & Round Split dies respectively. The machine will give good quality and production of your job. It runs with help of gear and provided with automatic and electronic reversing system for the long life of your tools. The spindle of the machine moves forward & backward automatically. This system saves the time of your worker. Your worker is only to tighten & loose the job and for keeping and lifting the job on the Jig. The machine being in vertical position, the chips (Burada) does not fall on the job and it does not block the tap. At the parts in the machine are tempered and well grinded.

The travel of the spindle is upto 100mm (4") upward & downward Automatically with the help of lead screw. It can be controlled in the Desire position and automatically reverse by limit switch control stopper. The table of size 150mm (6") X 250mm (10") Suitable for holding the Jig fixtyre or collect fix ture. For holding the job either true chuck or collet fixture A-42 can be use. The machine is provided with one set of lead screw fitted in the machine. For extra lead screw as per your job thread requirement available at extra cost.

Standard Accessories : 1H.P. 960 R.P.M. or 1440 R.P.M. Electrical Motor, Coolant Pump, 2 Nos. Die. Die Holder, 2 Nos. Tap holder, Limit Switch Panel Box, Reversing Switch, One set Tapping Bush As per Your job. V belt, One Nos. Jig Fixture For Your Job.

Range :

• J.B. Automatic Tapping Machine
• J.B. Pitch Control - Horizontal
• J.B. Pitch Control - Vertical
