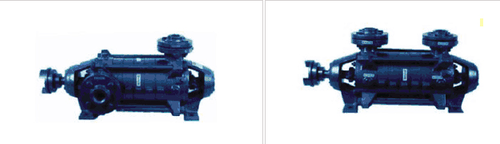

Centrifugal Multistage Pumps by Deep Engineering Co.

We offer Centrifugal Multistage Pumps.

Features:

• Vertically split suction. intermediate and discharge casings clamped together by external tie bolt and sealed with gaskets or 'O' ring as required by the design, pumping temperature of the liquid pumped and the construction of the pump
• Grease lubricated Antifriction Bearings designed to meet the requirements mounted on either side
• Pump uses soft graphite lubricated asbestos. The shaft is fitted with renewable shaft sleeve in the region of the stuffing box, which protects the shaft from wear due to packing. Special water-jacketed stuffing boxes, and special design of stuffing boxes with mechanical seals are available
• The discharge nozzle is top vertical. Suction nozzle horizontal located on the right hand side, left hand side or central position when viewed from the driving end Is available. The flanges are round corresponding to international standards
• The direction of rotation is clockwise as viewed from the driving end

Applications and Industries:

• Irrigation - Sprinkler Installations
• Pressure Boosting - Multistage story Building - Hydro - Pneumatic
• Water Works Fire Fighting - Mining wash down Applications
• Hydraulic press / Circuits transfer & circulation hot & cold water
• Boiler feed pumps - Condensate pumps
