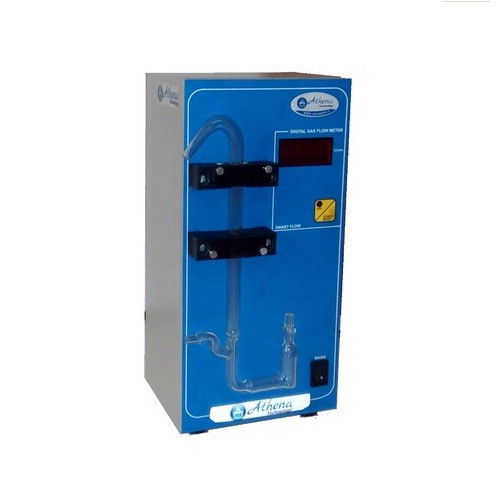

Digital Bubble Flowmeter by Athena Technology

Our competency lies in offering our clients an excellent quality range of Digital Bubble Flowmeter. Our offered flow meter detects the bubble enters and exits in the calibrated tube. This flow meter i..

Categories: ,

Product Description

Our competency lies in offering our clients an excellent quality range of Digital Bubble Flowmeter. Our offered flow meter detects the bubble enters and exits in the calibrated tube. This flow meter is perfectly designed with the use of impeccable grade components and latest technology under the supervision of dexterous technocrats who hold vast experience in the domain. This flow meter is highly acknowledged in the market for its easy operation and optimum finish.

Features:
  • Very reliable
  • Easy to use
  • Enhanced durability

Volumetric (Bubble) Measurement:
  • If the amount of gas exiting a column or split vent is measured in units of volume, the flow rate is volumetric based. For example, measuring the volume of gas in milliliters (mL) per unit time in minutes will result in a volumetric flow rate in mL/min. The most common device for measuring a volumetric flow rate is a bubble flowmeter. These devices are used to determine flow by measuring the time required for a gas stream to move a soap bubble through a specific volume.
  • There are several important considerations when using a bubble flowmeter
  • The flow measurement is based on volume, and can be affected by atmospheric pressure and temperature conditions.
  • If water vapor is present, it can result in an elevated flow rate measurement. The gas being measured can diffuse rapidly through the soap bubble resulting in an erroneously low flow rate measurement. This is especially a consideration for helium and hydrogen.
  • Usually, flow rates are measured at ambient temperature and pressure. If it is necessary to compare flow rates taken under different temperature and/or pressure conditions, a correction factor relative to a set standard temperature and pressure should be applied:
  • Fref: Famb (Pamb/Pref) (/TrefTamb)

Where:

  • Fref: flow corrected to reference conditions
  • Famb: flow measured at ambient conditions
  • Pamb: atmospheric pressure at ambient conditions
  • Pref: pressure at reference conditions (1 atm commonly used)
  • Tref: temperature at reference conditions in Kelvin (K) (298 K commonly used)
  • Tamb: temperature at ambient conditions in K

Product Specification
