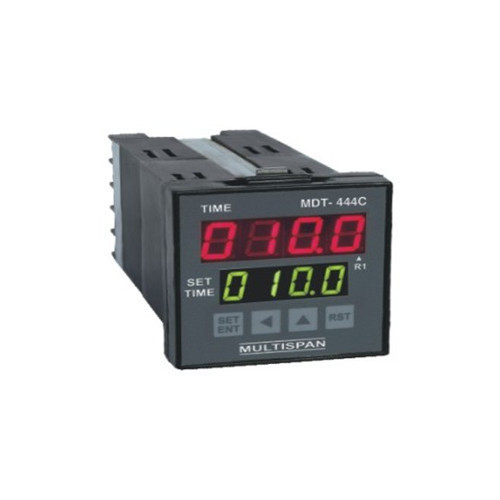

Digital Cycle Timers by N.D. Automation

Supplier: N.D. Automation

Specifications:MODELCYL-1044CYL-2044MDT-444CMDT-63CDimensions(HXWXD)mm96X96X10072X72X12048X48X10076X27X116Time SettingFront KeypadDirectionUp/Down SelectableDisplayUpper: RED, 4-Digit, 0.56"Lower: GRE..

Categories: ,

Product Description

Specifications:

MODEL

CYL-1044

CYL-2044

MDT-444C

MDT-63C

Dimensions
(HXWXD)mm
96X96X10072X72X12048X48X10076X27X116
Time SettingFront Keypad

Direction

Up/Down Selectable

Display
Upper: RED, 4-Digit, 0.56"
Lower: GREEN, 4-Digit, 0.4"
Upper: RED, 4-Digit, 0.4"
Lower: GREEN, 4-Digit, 0.3"
RED, 3-Digit, 0.3"

Time Setting Range

99.99/999.9/9999 Sec/Min Selectable

9.99/99.9/999 min/sec

Power Supply

90-270V AC/DC, SMPS

Memory Retention

Power Fail Memory Configurable

Set Point

Double Set Point ON and OFF Time Adjustable

Control Output

Relay

1 RELAY 230V AC, 5A (1C/O or 2C/O)

SSR

12 V DC output to drive SSR

BUZZER

12 V DC output to drive BUZZER

Optional Input

Micro S/W, Limit S/W, Proxy, Photocell,
230V AC Trigger or Enable Pulse

None

Indication

LED To Indicate Relay Status

Cut Out (mm)

92 X 92

68 X 68

44 X 44

-

Mounting

Flush panel mounting with clamps
fixed Behind the panel

Din Rail Mounting Type

Product Specification
