Product Description

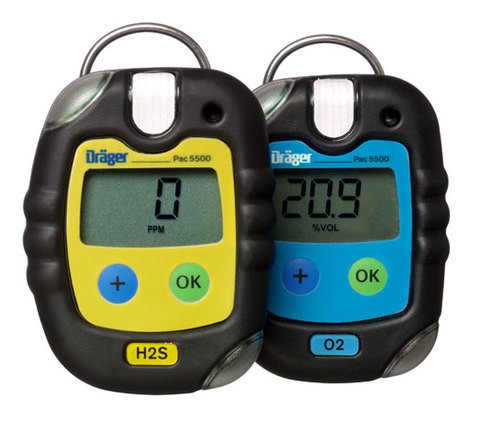

Dräger Pac® 5500 Single Gas Detector

Ideally suited for personal monitoring applications, the Dräger Pac 5500 provides quick detection of carbon monoxide, hydrogen sulfide or oxygen. Accurate, reliable and easy to use, this small, ergonomic instrument has no lifetime limitation.

FEATURES

RELIABLE: Reliable measurement results combined with no lifetime limitation
SMALL YET ROBUST: Small in size and light in weight, the Dräger Pac 5500 has been developed with the needs of industrial users and applications in mind.
SAFETY FIRST: The instrument's sensor has been specially positioned to allow gas access at both the top and front so that gas detection is continuous if the unit is placed in a pocket or if a gas inlet is accidentally covered.
CLEAR, HIGHLY VISIBILE DISPLAY: Clear and easy to see, the large liquid crystal display shows both the gas concentration and the measurement unit.
MINIATURE SENSOR TECHNOLOGY: Incorporating the latest miniature Dräger XXS sensor technology, the Dräger Pac 5500 has been specifically developed for use in personal monitoring and handheld applications.
WARNINGS AND ALARMS: In addition to vibrating and audible, multi-tone alarms, the Dräger Pac 5500 issues a clear, 360° visual alarm via bright, flashing LEDs at the top and base of the instrument.
DATA LOGGER: Able to store up to 60 events complete with dates and times, the Dräger Pac 5500 incorporates an IR interface and can be easily linked to a PC via a connecting cradle.

DRÄGER PAC® 5500 – AT A GLANCE

High performance Dräger XXS Sensors
No lifetime limitation with simple battery, sensor and filter replacement
8-15 second function test with the Dräger Bump Test Station
Optional calibration function after a failed function test
Adjustable bump test interval
Optional high visibility labels for instrument recognition at a distanceGas inflow from above and the front

TECHNICAL FEATURES

Dimensions (W x H x D) 84 x 64 x 25 mm; 3.3 x 2.5 x 1.0 in.
Weight 120 g; 3.8 oz.
Ambient conditions Temperature -30 – 50 °C; -20 – 120 °F
Pressure 700 – 1300 hPa
Humidity 10 – 90 % r. h.
Ingress protection IP65
Display Language-free LCD display, continuous indication of concentration, notice and alarm functions
Battery life (typical at 25° C) 8 hours of use per day, 1 minute alarm per day:
CO, H2S: > 2 years
O2: > 12 month
Alarms Visual (360° flashing LEDs at top and bottom), audible (multi-tone >90 dB at 30cm;1ft), vibrating
Instrument life No lifetime limitation
Event logger Storage of up to 60 events including concentration levels, date and time

APPROVALS: ATEX, CE-mark, UL, IECex
