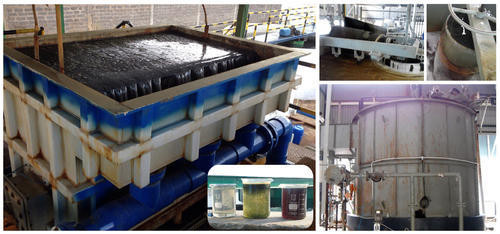

Electro Coagulation System by World Innovation Technologies

Product Description:

Owing to our expertise in this domain, we have come up with an excellent array of WIT Electro- Coagulation System. These systems follow the process of destabilizing emulsified and dissolved contaminants in an aqueous medium by discharging an electrical current. This forced electric current provides an electromotive motion to drive the commencement of chemical reactions. Our offered range is widely demanded in the market for its low operating cost, less solid wastes, color removal up to 95%, easy operations and effective BOD/COD removal.

Features:

• No addition of Chemicals, Lime of Ferric
• Very Low Operating Cost
• Less requirement of Space and Civil Construction
• Very less solid waste (Sludge) generation
• Color removal upto 95%
• BOD removal > 60%
• COD removal > 70%
• Simple and easy to operate and maintain
• Application:


  • Dye and intermediate industry
  • Oil processing unit
  • Textile processing unit
  • Sewage treatment plant

  Features:


  • Superior performance
  • Long working life
  • Easy to operate

  Electrocoagulation System:

  Envirotech believes in adopting new technology for effective wastewater treatment. Electrocoagulation is one the best technology for wastewater treatment and wastewater recycling for the wastewater generated from dye and intermediate industries, oil processing units, textile processing units, sewage treatment plants.

  Electro coagulation is a simple and efficient method to remove the flocculating agent generated by electro-oxidation of a sacrificial anode and generally made of iron or aluminum. In this process, the treatment is performed without adding any chemical coagulant and flocculants thus reducing the amount of sludge which must be disposed. Electro coagulation is based on the in situ formation of the coagulant as the sacrificial anode corrodes due to an applied current, while the simultaneous evolution of hydrogen at the cathode allows for pollutant removal by flotation. This technique combines three main independent processes, operating synergistically to remove pollutants. i.e Electro chemistry, coagulation and hydro dynamics.

  An Examination of the chemical reactions occurring in the electro coagulation Process:


  • Fe(s) Fe3+ + 3e- (Reaction at Anode)
  • 3H2O + 3e- 3/2H2 + 3 OH- (Reaction at Cathode)
  • F3 +3 + 3 OH- Fe(OH)3
  • This iron Hydroxide flocs normally act as adsorbents and traps for metal ions so that they can be eliminate from the system.
