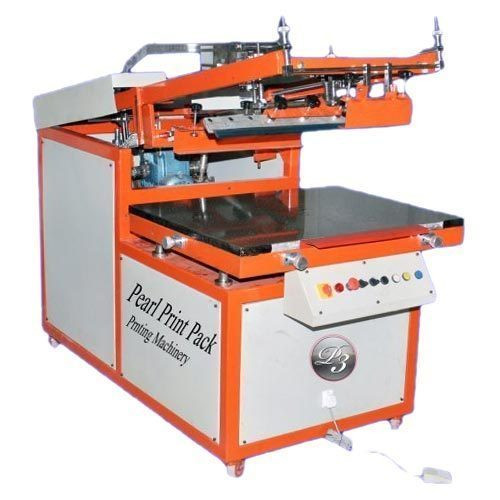

File Printing Machine by P3 Machines

Supplier: P3 Machines

Item Code: RealPearl We provide our clients File Printing Machine. Mainly used in the graphic industry for uniform and accurate U.V. spot coating and PCB, they provide precise registration with four c..

Categories: ,

Product Description

Item Code: RealPearl

We provide our clients File Printing Machine. Mainly used in the graphic industry for uniform and accurate U.V. spot coating and PCB, they provide precise registration with four color jobs. They do not require an air compressor, thus lowering the maintenance costs. Furthermore, a wider space is provided to enable easier paper loading.

Features:

  • Easy to use operated by unskilled labor with minimal training
  • Machine can print on any plain surface like paper, plastic sheets, metal sheets etc.
  • Easy adjustments & simple operation for multicolor
  • Easy adjustment of Short or Longer Squeeze Strokes
  • Printing stroke and speed are adjustable to meet different requirements
  • Machine can be operated by manual & auto foot break system
  • Vacuum suction of paper for perfect alignment
  • Vacuum table is vertically adjustable Forward, Backward, Left, Right, Up & Down
  • Electrical digital counting
  • Wooden or aluminum frames can be used

Technical Specifications :

  • Model : Real pearl
  • Maximum Sheet Size: 508mm X 762mm
  • Vacuum Table Format: 711 mm x 965 mm
  • Impression Per Hour: 1500
  • Machine Load: 2.0 H.P.
  • Vacuum Load: 1.0 H.P.
  • Power Required: 2.25 KW
  • Weight: 400 Kg

Other details :

Model

Maximum Print Area (inch)

Maximum Sheet Size (inch)

Maximum Speed (impression per hour)

Total Power

P3-1520

15x20

18x24

1440

1 HP

P3-1824

18x24

24x36

1210

2 HP

P3-2030

20x30

24x36

1000

3 H
