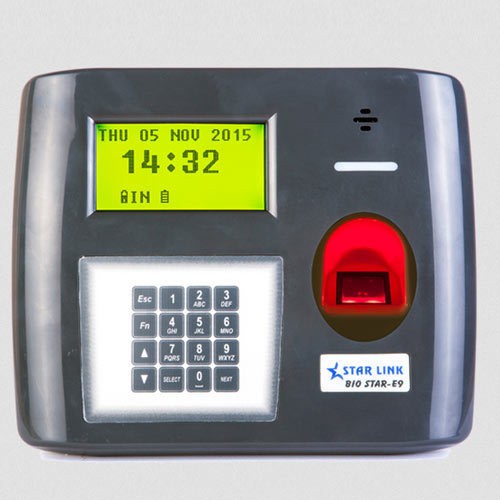

Fingerprint Biometric Device by SRS Enteraprises

Taking quality as our principal concern, we are betrothed in presenting an excellent quality of Fingerprint Biometric Device to the prestigious customers.

Bio-Star is a masterpiece in the field of attendance management and access control systems. It comes in new and improved style with larger graphic LCD display to show the information of the employee. It has more than 5 lacs recording capacity with up to 9,560 finger templates storage capacity. The bio-star can be installed in any organization to manage the attendance records of employees. The software linked with this device easily grabs the data and helps to keep updated record.

The bio-star is featured with audio message in english or hindi (or any other regional language) and visual message to confirm the punching status. In fact, any other customized messages can be loaded from end user. The bio-star runs on multiple operational modes like finger print, card or pin etc. This device can be connected through TCP/IP usb port for data transfer. Also, the bio-star can be customized according to your requirements.

Features:

• Larger LCD display
• 9560 finger template storage
• More than 5 lacs recording capacity
• Multiple operational modes
• TCP/IP connectivity
• Access Control Ready
• Customization possible

• Processor: 32 Bit RISC MCU @ 70MHz
• Memory Storage: 4 GB SD Memory Card
• User Capacity: 15000
• Finger template storage capacity: 9560 templates
• Display LCD: 128×64 STN / YELLOW Graphics Display ( 70.70 mm 38.80 mm )
• Identification Time: Less than 1 Sec
• USB Port: Support Pen-drive for data transfer
• Card Type: Contact less EM 4100 Card (Proximity) I (ISO / IEC 14443 A)
• Read Range/Frequency: EM Card – up to 120 mm/125 KHZ; up to 60 mm/13.56 MHz
• Communication Method: Serial RS232, Ethernet RJ45 TCP / IP Protocol
• Baud Rate (Selectable): (2400 ­115200) bps, TCP/IP Ethernet 10/100Mbps
• Operating Temperature: 0 to 50 °C
• Operating Humidity: 10 to 90% Non­condencing
• Operating Voltage: DC 12V , 1 A Power Adapter (Battery Backup Optional at extra cost)
• Keypad 16 Key (4×4)
• Dimension/ Weight: L 182mm H:155mm W:45mm/500 grms
• Visual Indicator: Red/ Green LED / Message on LCD in English / Other language (Optional at extra cost)

Audio Indicator:

• Voice Guided message (Adjustable volume)
• voice message in other language (at extra cost)
• Customized voice greeting (at extra cost)

• Dedicated 400MHz DSP 2 Mb RAM
• ISO/IEC 19794 Fingerprint Template
• Sensor Technology: Optical CMOS
• Sensing Area: 16.0mm × 19.0mm
• Image Size (Pixels): 272 × 320
• Image Resolution: 500 dpi
• Finger Verification Option: 1:N, 1:1
• Finger Template Size: 384 bytes.
• EER < 0.1%
• Enrollment Time: 1~1.5 Sec
• Verification < 0.8 Sec
• Identification Time: 1~1.5 Sec

Standard Applications:

• Time Attendances
• Access Control
• Payroll
• Canteen
• Visitor

Other Applications:

• School / College Mgt.
• Club Mgt.,
• Gym Mgt.
• Coffee Vending Machines
• SDK available for any other applications for system integrators

• Only Finger
• Only Card (EM)
• Card with finger
• Finger in card ( 2 fingers in 1 Kb card, 10 fingers in 4KB card)
• Card with password
• Pin with passsword
• Only PIN

Note: Combination varies as per the model
