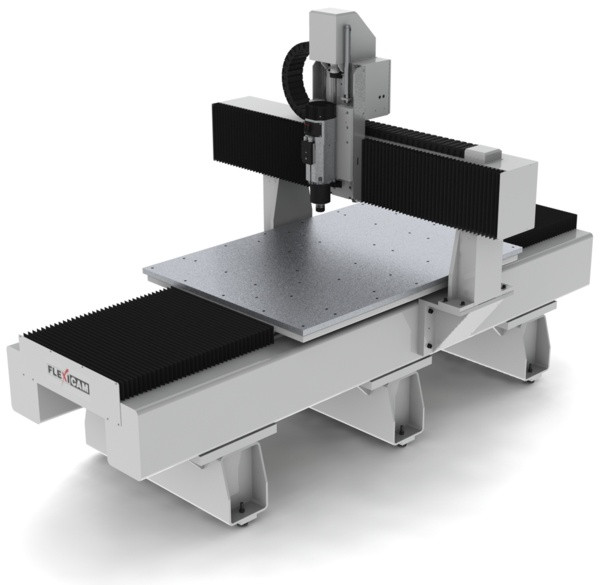

Flexi CAM Viper CNC Router by Flexicam India Pvt. Ltd.

We are renowned manufacturer and exporter of FlexiCAM Viper CNC Router. This product is designed from high grade quality raw material procured from reliable vendor of the market in compliance with international standards. The offered product can be customized as per specifications given by the client. Our offered product is stringently tested on various parameters to ensure its flawlessness.

Highlights:

• Moving a table design for high stiffness, accelerations and speed

• Designed for high speed, heavy duty routing as well as 3D machining

• All-steel base frame and gantry

• Can be fitted with almost all spindles and many options

• Several industrial control systems are available

• Many sizes available

Specifications:

• 3D computerized routing system

• AC servo motors on all axis

• Ball screws on all axis

• Z axis clearance 250 mm

• Z stroke 280 mm

• Drain tray

• Bellows on X and Y to prevent linear rails and ball screws from chips, dust and coolant

Work Area:

• 650 x 650 mm (Viper 606)

• 1000 x 650 mm (Viper 609)

• 1270 x 650 mm (Viper 612)

• 950 x 1270 mm (Viper 1209)

• 1270 x 1270 mm (Viper 1212)

• 2540 x 1270 mm (Viper 1225)

Spindles:

• Manual Spindle 5.6 KW, 24,000 RPM, ER25 Collet

• Manual Spindle 9.5 KW, 18,000 RPM, ER40 Collet

• Automatic Tool change Spindle 8 KW, 24.000 RPM, ISO-30

• Automatic Tool change Spindle 12 KW, 24.000 RPM, HSK-63F

• Automatic Tool change Spindle 18 KW, 24.000 RPM, HSK-63F

• Automatic Tool change Spindle 1.5 KW, 40,000 RPM

• Automatic Tool change Spindle 11 KW, 6,000 / 8,000 / 10,000 RPM, BT-40

• Automatic Tool change Spindle 11 KW, 6,000 / 8,000 RPM, BT-50

Control Systems:

• FlexiCAM Standard Control System

• FlexiCAM Advanced Control System

• Siemens 840Dsl

• Fanuc 0i-M

• Fanuc 18i-M

• Heidenhain TNC320

• Heidenhain TNC530i

Table Tops:

• Welded and machined steel work table with aluminium work surface

• Matrix of threaded holes for clamping material, vises or jigs

• Precision aluminium T slot table

• Precision aluminium vacuum table with rotary vane pump

• Custom tabletops or fixtures are available on request

Options:

• Splash guard

• Full enclosure

• High gantry clearance (280 or 400 mm)

• Z axis stroke 450 mm

• Welded and ribbed gantry

• Central lubrication system

• Misting/coolant system

• Linear tool changer

• Rotary tool changer

• Ridgid tapping (closed-loop-spindle)

• Automatic material loading and unloading system

• Pneumatic feed drill

• Spindle aggregates

• Studwelder

• Blindrivet aggregate
