Product Description
Highlights:
Work Area:
Bi-Rotational Spindle Units:
Control Systems:
Tabletops:

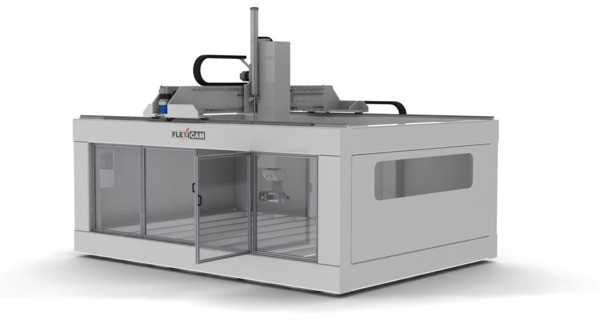

- Designed for for trimming plastic, composite and wood materials, as well as for machining light alloys
- All-steel base frame and gantry
- Welded and ribbed Z ram for maximum stiffness
- Z axis stroke 1,200 mm
- Several bi-rotational spindle units and other options available
- Several industrial control systems are available
- Moving gantry design for space-saving footprint
- Enclosed machine design
- 5 axis computerized routing system
- Large size preloaded linear rails on all axis
- High power AC servo motors on all axis
- Low backlash helical rack and pinion drive system on all axis
- High precision planetary gearboxes on all axis
- Maximum speed up to 90 m/min, 1500 mm/s
Work Area:
- Axis stroke 3,735 x 2,170 x 1,246 mm (X x Y x Z)
- Work envelope 3,200 x 1,635 x 1,100 mm (X x Y x Z)
- Custom sizes are available on request
Bi-Rotational Spindle Units:
- FlexiCAM 5-Axis Bi-Rotational Spindle Unit (10/12 KW, 24,000 RPM, HSK-63F)
- Custom bi-rotational spindle units are available on request
Control Systems:
- Siemens 840Dsl
- Fanuc 18i-M
- Heidenhain TNC530i
Tabletops:
- T-Slot Table
- T-Slot Vacuum table with Regenerative Blower(s)
- High Pressure Vacuum table with Rotary Vane Vacuum Pump(s)
- Custom tabletops or fixtures are available on request
Options:
- Dust collection system
- Central lubrication system
- Misting/coolant system
- Linear tool changer
- Rotary tool changer
- Rigid tapping (closed-loop-spindle)
- Pneumatic part locator pins
- Barcode scanner
- 2D contour scanner (laser)
- OCS Print mark Scanner (laser)
- 3D laser scanner
- CE package (mandatory for machines installed in Europe)
