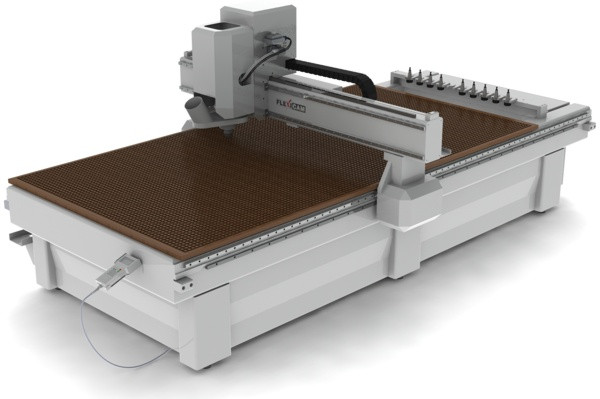

FlexiCAM S2 CNC Router by Flexicam India Pvt. Ltd.

Owning to extensive industry experience and profound market understanding, we have become one of the dominant organizations of a comprehensive gamut of FlexiCAM S2 CNC Router. These products are made as per international quality parameters. Our clients can avail these products in different size and can also be customized as per specific demand and need of the clients. We offer this FlexiCAM S2 CNC Router at pocket friendly price.

Highlights:

• Outstanding price-performance-ratio

• All-steel base frame and gantry

• Moving gantry design for space-saving footprint

• Base frame-mounted electrical enclosure for small footprint as well as easy shipping and handling

• Plug-and-play installation, just add power and compressed air

Specifications:

• 3D computerized routing system

• AC servo motors on all axis

• Rack and pinion drive system with planetary gearboxes on X and Y axis

• Ball screw on Z axis

• Z axis stroke 240 mm

• Z axis clearance 150 mm

• Maximum speed 25 m/min, 420 mm/s

Work Area:

• 1.580 x 1.540 mm (S2 1515)

• 2.580 x 1.540 mm (S2 1525)

• 3.080 x 1.540 mm (S2 1530)

• 4.080 x 1.540 mm (S2 1540)

• 3.080 x 1.850 mm (S2 1830)

• 3.780 x 1.850 mm (S2 1837)

Spindles:

• Manual Spindle 5.6 KW, 24,000 RPM, ER25 Collet

• Automatic Tool change Spindle, 8 KW, 24,000 RPM, ISO30

Control System:

• FlexiCAM Standard Control System

Tabletops:

• T-Slot Table

• T-Slot Vacuum table with Regenerative Blower(s)

• High Pressure Vacuum table with Rotary Vane Vacuum Pump

Options:

• Misting/cooling system

• Barcode scanner

• 2D contour scanner (laser)

• OCS print mark scanner (laser)

• Tangential oscillating knife

• Swivel knife assembly

• Base frame cover

• CE package (mandatory for machines installed in Europe)
