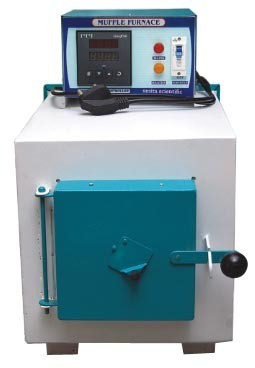

Muffle Furnace:

Furnace finds application in Industries & Laboratories for ashing, heat treatment, ignition test, gravimetric analysis, Determination of volatile and suspended solids & cement testing.
Heavy duty Mild Steel construction for durability having powder coating finish. Outer Casing Made from Stainless Steel – 304 grade in all GMP Models.
Un-exposed long lasting KANTHAL A-1 heating elements.
High quality Ceramic Wool insulation to give maximum thermal efficiency.
Temperature controlled by Dual Display Microprocessor based PID Temp. Controller & CR/AL - K Type thermocouple sensor.
Maximum Temperature - 1200°C.
Working Temperature Range - 400°C to 1160°C. Operates on 230 Volts AC Single phase 50 Hz.
This furnace is useful for hardening, annealing, reheating etc. Under the guidance of dexterous professionals, the provided furnace is manufactured with the use of optimum quality components as well modern methodology in compliance with set industry guidelines. Furthermore, our clients can buy this furnace in different specifications in accordance with their requirements.

Features:

Specifications:

Other Details:

It is light weight and fast heating equipment.
Most useful for Ashing, Fasions, lgniting and heat treating of small parts in chemical, industrial fields, colleges.
Out side body made up of heavy gauge M.S. / G.I duly powder coated Inner muffle with high temperature Insulating material
Maximum Temperatures 1000°C / 1200°C & working temperature 930°C/1130°C
Temperature Controlled by Digital Temperature Controller cum Indicator
Heating elements made of kenthal wire would extremely on the muffle
Control panel fitted on top of the units with indicating Lamps & Switches
A Uniform heat distribution through all 4 sides with kental wire
A special solid state silver fuse for protection to elements in case of over heating
Operares on 230 Volts A.C. only
Various Sizes Available
