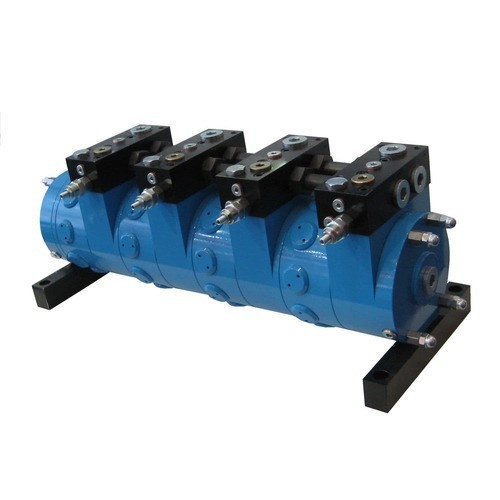

Product Description
If several motors or cylinder are operated by a single pump without any means of controlling their individual flow only the
motor or cylinder with the lowest pressure requirement would start its work cycle.
The motor or cylinder with the next lowest pressure requirement would only start when the first unit has completed its work cycle.
The motor cylinder with the next lowest pressure requirement would only start when the first unit has completed its work cycle.
This mode of operation is generally undesirable and it is, therefore, necessary for the total pump flow to be divided into a series of partial flow.
Specification:
motor or cylinder with the lowest pressure requirement would start its work cycle.
The motor or cylinder with the next lowest pressure requirement would only start when the first unit has completed its work cycle.
The motor cylinder with the next lowest pressure requirement would only start when the first unit has completed its work cycle.
This mode of operation is generally undesirable and it is, therefore, necessary for the total pump flow to be divided into a series of partial flow.
Specification:
| Model | FDM 50 | FDM 75 | FDM 100 | |
| Displacement per section cc/rev | 50 | 76 | 101 | |
| Flow per section | Continuous I/min | 60 | 90 | 125 |
| Intermittent I/min | 80 | 120 | 160 | |
| Continuous working pressure bar | 210 | 210 | 210 | |
| Intermittent working pressure bar | 250 | 250 | 250 | |
| Maximum working pressure bar | 320 | 320 | 320 | |
| Power per section | HP | 27 | 48 | 54 |
| kW | 20 | 35 | 40 | |
Product Specification
