Probe Sonicator by Athena Technology

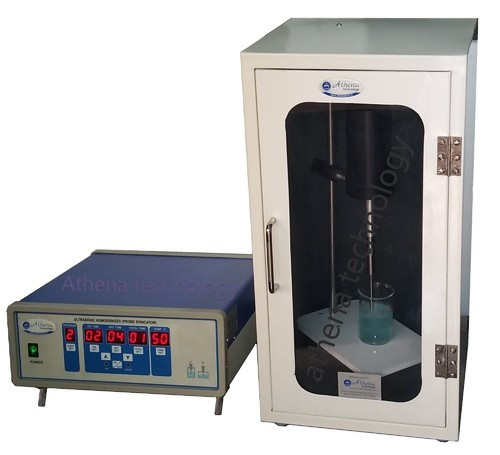

Athena Ultrasonic Processor (Probe Sonicator):

• Piezoelectric frequency energy converter : Lead zirconate TITANIUM
• (PZT) pyro electric ceramics .
• Standard probe: Titanium Alloy material Diameter (probe):
• 3mm/6mm/ 10mm / 12mm.
• CE & ISO 9001: 2008 Certified
• Variable Amplitude Control
• Micro Based, processer, Digital Display with user prompts
• Full Function pulsar ON & OFF
• Laboratory Jack

Ultrasonic Homogenizers are recommended for homogenization and Analysis of laboratory samples that do not require traditional grinding or rotor-stator cutting techniques for processing. The ATHENA Ultrasonic Homogenizers offer precision engineering with all the necessary features to create a total system for ultrasonic disruption. In biological applications, Probe Sonicator is often used to disrupt cell membranes and release cellular contents. Probe Sonicator is also used to fragment molecules of DNA. Probe Sonicator is commonly used in nanotechnology for evenly dispersing nanoparticles in liquids and for breaking down particles to nano size.

Major Function:

• Auto-tuning and power control convenience for user.
• Timer control the total working time from 1min to 99min;
• Set TEMP as per required
• Display the remaining time on countdown state.
• Digital Display with Microprocessor Control
• Programmable in 5 /10 USER Settings
• ON/OFF impulse timer: make sure to deal with temperature sensitive sample. On and off can be choose to continue setting from 1s , 4s or 8s;
• Automatic amplitude compensation to make the amplitude not changed following the carrying.
• Digital operation , easy , direct type.

Technical parameters:

• Timer: digital 1 min –90 min adjustable Power adjustable: 20%--100%, Impulse: digital closed loop, open loop: 1s, 4s, 8s
• Piezoelectric frequency energy converter: Lead zirconate TITANIUM(PZT) pyro electric ceramics.
• Standard probe: titanium alloy material Diameter (probe): 3mm /6mm /9-10mm /12mm.
