Product Description

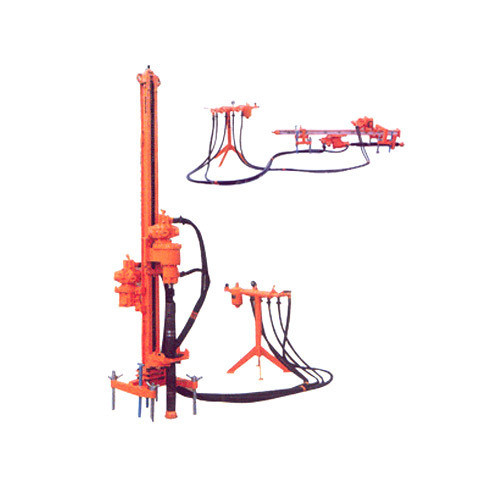

With the years of experience, we are able to offer our customers with Slim Hole Drilling Rigs. This rig is manufactured using superior grade material and refined technology in harmonization with industrial standards. In instruct to make certain quality, the offered rig is scrupulously tested on certain parameters by our quality checkers. Keeping in mind the dissimilar requirements of our clients, we offer this Slim Hole Drilling Rig in assorted sizes and specifications and at inexpensive price.
Technical Specifications:
DTH Drill: Drilling diameter Depth (Vertical) Depth(Horizontal) |
3.5”-4.5” (90-115 mm) 30 meters 20 meters |
Rotary Head BHP RPM Max. Torque | 4 cylinder piston type air motor with spur type reduction gearbox 4.5 0-50 1125 Nm |
Feed System Pull up Pull down Pull up and pull down speed Type of feed BHP | 4 cylinder piston type air motor with spur cum worm drive gearbox 0-2000 kgf 0-2000 kgf 0-15 mtr/minute Chain feed 4.5 |
Air line Lubricator | Provided |
General dimensions & weight Height of rig Depth of rig Width of rig Weight |
3000 mm 600 mm 600 mm 470 kg |
Air compressor
Free Air Delivery Working pressure | Recommended Min Max 10.3 m³/min (365 cfm) 12.7 m³/min (450 cfm) 7.03 kg/cm² (100 psi) 10.5 kg/cm² (150 psi) |
