Product Description

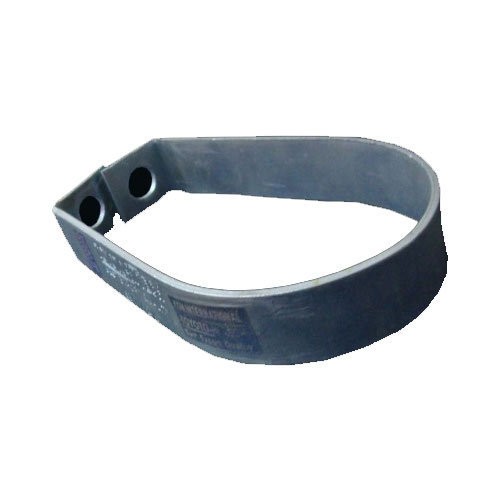

Offered by KGN International is a range of Sprinkler Pipe Clamp that finds application in water lines, drainage lines, firefighting lines and sprinkler lines of all types of pipe materials like PVC, cast iron, galvanized iron, copper and stainless steel. Further, these precision engineered components are manufactured as per the industrial standards and are offered at reasonable prices.
Features:
Features:
- The Clamp Highly Bearing Load in one piece
- Break Loads and Safe load as per IS 1608-2005
- Could be adjust in height perfectly
- Easy to Hanging
- One piece clip guarantees a high permissible load
- Mounting without any tools
- Locking device allows easy premounting
- Adjustable in height.
- Using in fire fighting and sprinkler pipes Hanger
- Design As well as MSS-SP8, type-10
- Galvanized Electro plating as per IS 1647 - 2005 Standard
Specifications:
| Part No | Dia (mm) | Strip Size (mm) | Total Height (mm) | Safe Load (Kgs) | Breaking Load (Kgs) |
| KGN/SP 2000 | 15 mm | 1.2 X 25 | 57 | 165-170 | 300 |
| KGN/SP 2001 | 20 mm | 1.2 X 25 | 61 | 175-185 | 300 |
| KGN/SP 2005 | 25 mm | 1.5 X 25 | 68 | 200-210 | 400 |
| KGN/SP 2008 | 32 mm | 1.5 X 25 | 75 | 200-230 | 400 |
| KGN/SP 1012 | 40 mm | 1.5 X 25 | 81 | 200-250 | 400 |
| KGN/SP 2015 | 50 mm | 2 X 25 | 100 | 450-455 | 600 |
| KGN/SP 2020 | 65 mm | 2 X 25 | 120 | 450-460 | 600 |
| KGN/SP 2022 | 80 mm | 2 X 25 | 135 | 450-460 | 620 |
| KGN/SP 2025 | 100 mm | 2.75 X 25 | 165 | 450-460 | 650 |
| KGN/SP 2032 | 150 mm | 2.75 X 25 | 230 | 550-565 | 782 |
Product Specification
