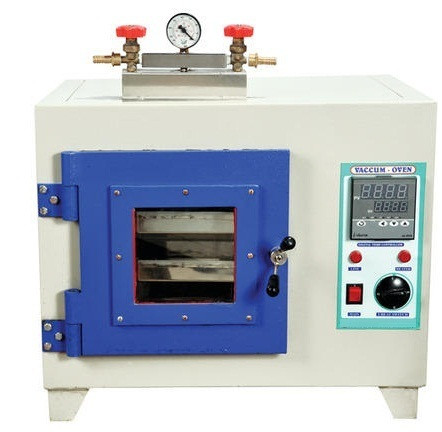

Vacuum Oven by Athena Technology

By keeping the track of the latest market trends, we are engaged in offering an exclusive range of Vacuum Oven. Our offered oven is used in various industries. The provided oven is designed and manufa..

Categories: ,

Product Description

By keeping the track of the latest market trends, we are engaged in offering an exclusive range of Vacuum Oven. Our offered oven is used in various industries. The provided oven is designed and manufactured by our experts making use of premium grade components as well as cutting-edge methodology. In addition to this, we make sure to offer this oven in several specifications according to the needs of our esteemed clients.


Features:

  • Double walled construction outer S.S.304 & Inner S.S.304
  • Gap Between the two walls filled with high grade glass wool insulation
  • PID Controller with dual display to view set valve & present valve with auto tuning facility


Vacuum Ovens GMP (Without Vacuum Pump):

  • Vacuum ovens are commonly using the temp range from 50 ºC to 200 ºC. The inner chamber is made out of stainless steel 304 & outer of stainless steel 304, glass wool insulation is provided all around the chamber to minimize heat loss due to radiation. The door is provided with a glass window to view the samples placed inside. The digital temp is controlled & indicated by a Maximum vacuum: 760 mm of Hg. Mains 220\ 230 V.AC


(a) Round:

Size

Rating Watts

9”dia*12”depth

300

12”dia*15”depth

750

15”dia*18”depth

950


(b)Rectangular:

Working Chamber

L * W * D

Rating

Watts

No. of

Shelves

8 x8x12

1400

2

12x12x12

1500

2

12x12x16

1800

2

14x14x20

2000

3

18x18x24

2200

3

20x20x30

2500

4


This Vacuum Oven, GMP Model is also available in Round & Rectangular Model also.


Technical Specifications:

  • Double walled construction outer S.S.304 & Inner S.S.304
  • Gap Between the two walls filled with high grade glass wool insulation
  • PID Controller with dual display to view set valve & present valve with auto tuning facility
  • Temp. Range 50 C to 200 C with Accuracy of ± 1 C
  • Full toughen glass window to view
  • Silicon rubber gasket tuning sealed with door


Optional Accessories:

  • Programmable controller with 8 Steps
  • PID controller with printer interface & Timer
