Product Description

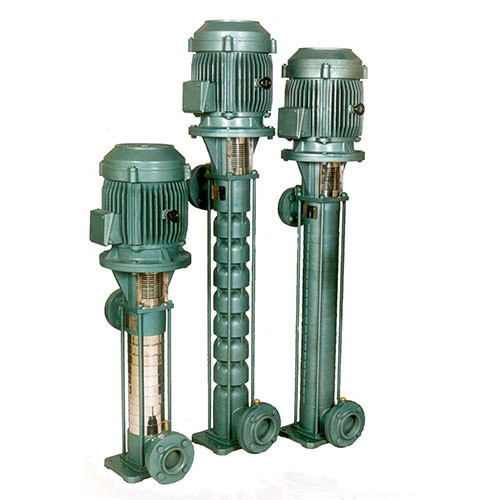

Vertical Multistage Centrifugal Pumps (AVRE, AVRS and AVMS Series) are reliable and rugged construction. They have proven their performance over many decades. A wide variety is available to suit high pressure applications.
Salient Features:
Constructional Features:
Motor:
Pump:
Material of Construction:
Motor:
Pump:
Applications:
Salient Features:
- Proven performance and durability for many decades
- Reliable and rugged in construction
- Heavy duty motor a pump withstanding tough field conditions
- Energy efficient motor
- Pump efficiency at par with International standards
- Noiseless and smooth operation
- Ease in maintenance / Zero maintenance
Constructional Features:
Motor:
- Totally enclosed cooled motors
- Suitable for 340-440V three-phase 50Hz power supply
- Dynamically balanced rotors
- Vibration free and noiseless operation
- Heavy ball bearing to take higher thrust load
Pump:
- Impeller: High grade bronze LB4, BS 1400
- Pump shaft: Stainless steel AISI 410
- Diffuser- High grade bronze LB4,BS 1400
- Lournel bearing- High grade bronze LTB4, BS 1400
- Housing, casings, motor bracket and base - cast iron FG200, IS 210
Material of Construction:
Motor:
- Motor body: Cast Iron
- Motor Type: Squirrel cage Induction motor TEFC type
- Bearings: Heavy Duty Deep groove ball bearings
- Rotor shaft: Carbon Steel
- Cooling fan: Aluminum / Cast iron
- Cooling fan cover: Cast Iron
- Eye bolts: Forged steel
Pump:
- Pump shaft: Stainless steel
- Diffuser Housing /Bowl: Cast Iron
- Diffuser: Bronze
- Impeller: Bronze /Stainless steel
- Sealing arrangements: Carbon vs Ceramic
- Base plate: Cast Iron
- Inlet bracket: Cast Iron
Applications:
- Water supply for Hotels, Hospitals, Multiplexes, Commercial complexes Housing complexes
- Water cooling & Circulation systems
- Boiler feed applications
- Pressure Boosting applications
- Drip & Sprinkler Irrigation
